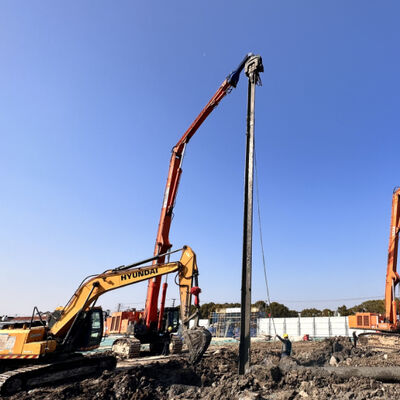

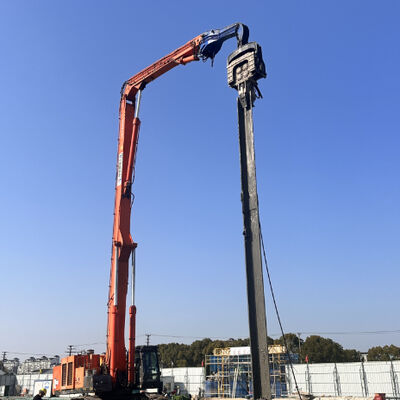

27M Max-Length Pile Driver for 75-80 Ton Excavator, High-Frequency Impact & Quick-Install Mast
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 진동 주파수 | 2500rpm | 운영상의 압력 | 32Mpa |
|---|---|---|---|
| 제품명 | 유압 파일 드라이버 | 무게 | 4200kg |
| 팔의 무게 | 1100kg | 적합한 파일재료 | 콘크리트, 강철, 목재 |
| 망치의 무게 | 3150 킬로그램 | 굴착기 | 75~85톤 |
| 원심력 | 997쿠나 | 편심 모멘트 | 14.5kgm |
| 강조하다 | 27M max-length hydraulic pile driver,High-frequency impact pile driver,Quick-install mast excavator pile driver |
||
제품 설명
Four-Eccentric Hydraulic Pile Driver – The Fastest Way to Drive & Extract Piles in Southeast Asia, India & Russia
Product Keyword: pile driver
-
What it is
The VIBRA Four-Eccentric Hydraulic Press-in Pile Driver is a excavator-mounted, high-frequency vibratory pile driver that can push or pull sheet piles, H-beams, tubes or precast concrete piles in minutes instead of hours. Built in China, proven on ports in Indonesia, metro lines in Mumbai and oil-gas yards in Siberia, it is the one pile driver contractors trust when schedules are tight and soil is tough.
-
Five headline features
- Four eccentric gears give 360° balanced force – no pile tilt, no re-alignment downtime.
- 20 m/min crowd & extraction speed – finish 30 m long pile in 15 min, cut diesel cost 30%.
- 2 000 kN crowd force – penetrates hard laterite, dense sand or frozen clay without pre-drilling.
- One operator controls everything from the cabin radio remote – no labor standing on the mast.
- Swap from pitch to drive to extract with a joystick – keep the same pile driver all day.
-
Advantages for SEA, India, Russia
- Tropical downpour or –40 °C frost, sealed IP66 motor keeps the pile driver running.
- Works on 48-100 ton carriers you already own – no new crane investment.
- 4-10 CBM sea-worthy plywood case fits one 20 GP container; freight to Jakarta, Mumbai or Vladivostok below 1 000 USD.
- Local language decals (Bahasa, Hindi, Russian) and 7-day on-site start-up service available.
- Spare parts kept in Surabaya, Chennai and Moscow; 72 h delivery promise.
-
Technical Parameters (pile driver family)
Model FV-500 FV-600 FV-700 FV-800 FV-900 Vibration (rpm) 2800 2700 2600 2500 2400 Centrifugal Force 759 kN 818 kN 915 kN 997 kN 1 064 kN Max. Pile Length 18 m 21 m 24 m 27 m 32 m Operating Pressure 30 MPa 32 MPa 32 MPa 32 MPa 32 MPa Hammer Weight 3.5 t 3.75 t 3.85 t 4.2 t 4.35 t Arm Weight 0.75 t 0.9 t 1.0 t 1.1 t 1.2 t Excavator Class 48-52 T 50-65 T 65-75 T 75-85 T 85-100 T Package Volume 4 CBM 5 CBM 6 CBM 8 CBM 10 CBM Crowd / Extract 20 m/min & 2 000 kN on all models Pulling Force 2 000 kN (equal to crowd) Power Source Diesel engine of carrier excavator – no extra genset Certification ISO 9001 -
Typical Applications
- Port sheet-pile wharves in Batam, Jakarta, Chittagong.
- Metro diaphragm wall guide beams in Delhi, Bangalore, Kolkata.
- River flood barriers along the Mekong, Irrawaddy, Brahmaputra.
- Oil & gas pipe-rack foundations in Novosibirsk, Surgut.
- Bridge abutments on the Mumbai-Goa expressway.
- Temporary cofferdams for Russian LNG plants in Yamal.
-
FAQ – the questions we get every day
Q1: Is this pile driver really faster than a drop hammer?
A: Yes. Drop hammer averages 3-5 m/h; our vibratory pile driver reaches 20-30 m/h in sandy soils, saving 5-7 days per 100 piles.
Q2: Can I mount it on an old 20-ton excavator?
A: No. Minimum carrier is 48 ton; otherwise hydraulic flow is too low and the pile driver will stall. We help check your pump spec before order.
Q3: How long is delivery to India?
A: Standard FV-800 in stock, 7 days ex-works; sea freight to Chennai 12 days, total 19 days door-to-door with clearance.
Q4: Do you send an engineer for start-up?
A: One Russian/English speaking technician is included for 7 days; you only pay visa, flight and hotel.
Q5: What consumables should I stock?
A: Eccentric bearings, rubber dampers, remote batteries – we give you a one-year spare-part list priced under 1 % of pile driver value.
Q6: Will it pull piles as well as drive?
A: Absolutely. Same 20 m/min speed and 2 000 kN force; just switch the hydraulic direction and clamp the pile upside-down.
Q7: How loud is it?
A: 75 dB at 7 m – half of a diesel impact hammer. Meet city noise limits in Bangkok, Mumbai, Moscow without night-work restrictions.
-
Price & Terms
MOQ: 1 set. Price: open negotiation, guide figure FOB Qingdao 48 000-98 000 USD according to model. Payment: 30 % T/T advance, 70 % against BL copy; or 100 % irrevocable LC at sight. Supply ability: 15 sets pile driver per month. Warranty: 12 months.
-
Next step
Send us your excavator brand, model and the pile length you handle most. We will recommend the exact pile driver model, freight cost and arrival date in 12 hours. Let the VIBRA Four-Eccentric pile driver drive your next project to the finish line – faster, quieter and cheaper than any other pile driver on the market.
