Heavy Lifting Redefined: SV-400 Side Grip Pile Driver – 656 kN Force, 490 kN Bottom Clamp, Matches 32–40t Excavators

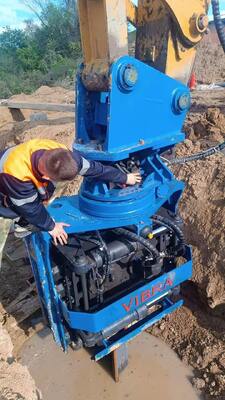

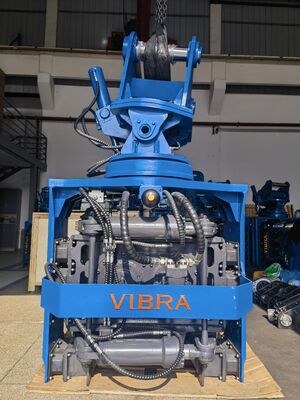

The SV-400 Side Grip Pile Driver is a heavy-duty hydraulic vibratory hammer attachment engineered to transform standard 32–40 ton excavators into high-capacity piling rigs . Designed for contractors tackling large-scale infrastructure , industrial , and urban development projects , the SV-400 delivers an impressive 656 kN centrifugal force and a powerful 520 kN bottom clamp . It handles the complete piling cycle—clamping , positioning , driving , and extraction—without a crane or auxiliary equipment . Whether you are working on deep foundations , bridge abutments , port expansions , or high-rise building sites , the SV-400 delivers the power and reliability you need in confined spaces .

• Side Clamp (465 kN): Provides secure gripping during pile positioning and extraction .

• Bottom Clamp (520 kN): Delivers exceptional clamping force during driving , preventing slippage even under the most demanding conditions .

• Full-Cycle Efficiency: Operators can seamlessly transition between clamping , driving , and extraction from the cab—no helper equipment or crane required .

• 360° Continuous Rotation: Align piles from any angle without repositioning the excavator .

• ±30° Bidirectional Side Tilt: Achieve precise vertical alignment on uneven terrain or under low overhead obstructions such as bridges and power lines .

• 2,300 – 3,000 rpm Frequency Range: Adapt to varying ground conditions :

• Replaceable Standard Clamp Seat Interface: Quickly adapt to different pile types :

  • Steel sheet piles (Larssen , straight web , U-type)

  • H-beams (wide flange , HP sections)

  • Circular pipe piles and concrete piles

• Minimal Downtime: Tool-free or quick-release design keeps your project moving between pile type changes .

• Operates at 32 MPa , matched to 32–40t excavator hydraulics .

• Requires 280–360 L/min flow , compatible with most large excavators in this class .

• 3,000 rpm maximum frequency enables faster cycle times in suitable soils .

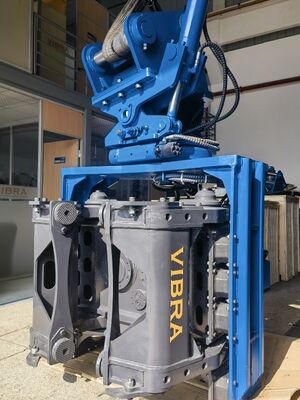

• Reinforced Box-Style Housing: Resists torsional stress during tough jobs and deep driving .

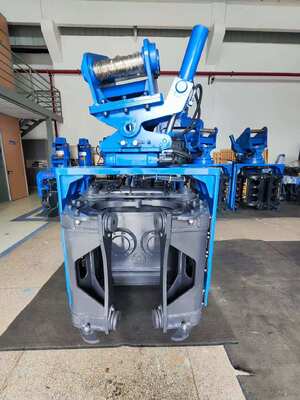

• Hardened Steel Clamp Jaws: Extended service life even in abrasive soils and rocky conditions .

• Easy Maintenance: Centralized grease points and readily accessible wear parts reduce downtime and simplify servicing .

A: The SV-400 is designed for 32–40 ton excavators from all major brands (Cat, Komatsu , Hitachi , Kobelco  , Hyundai , Doosan , JCB , Sany , etc.) . We provide custom mounting brackets to match your machine's arm pin dimensions exactly .

A: Yes . The SV-400 performs full-cycle piling—clamping , positioning , driving , and extracting—using the same attachment . The dual-clamp system provides more than sufficient grip for extraction forces , even with long or deeply embedded piles .

A: The SV-400 handles :

• Steel sheet piles: Up to 18 m length (depending on soil conditions and pile section)

• H-beams: Up to 600 mm section height (HP14 , HP16 , wide flange)

• Pipe piles: Up to 1,000 mm diameter

• Concrete piles: Up to 400 mm square or round (with appropriate clamp adapters)
  Contact us with your specific pile dimensions and we will confirm compatibility .

A: No . The SV-400 is directly driven by your excavator's hydraulic system . We recommend verifying that your machine can supply 280–360 L/min at 32 MPa . A hydraulic flow and pressure test can be arranged prior to shipment .

A: Installation takes approximately 2–3 hours with basic tools :

1. Remove bucket and link from excavator arm .

2. Mount the SV-400 bracket to the excavator arm using the provided pins .

3. Connect hydraulic hoses to the excavator's auxiliary circuit (breaker or hammer lines) .

4. Connect the control system to the excavator's cab .

5. Test rotation , tilt , and clamp functions .
   A detailed installation manual and on-site support are available .

A: Standard warranty is 12 months from the date of shipment , covering manufacturing defects in materials and workmanship .

In markets like India's massive infrastructure push , Southeast Asia's booming construction sector , and Russia's large-scale industrial and energy projects , contractors face a common challenge : delivering high-quality results in confined spaces with tight budgets and demanding schedules . The SV-400 Side Grip Pile Driver bridges the gap between compact agility and heavy-duty power .

• For Indian contractors: Tackle deep foundations for metro projects , high-rise buildings , and bridges with precision and efficiency .

• For Southeast Asian projects: Overcome soft soils and tight urban sites with powerful , one-man piling operations that save time and money .

• For Russian industrial sites: Drive heavy piles in remote locations and harsh conditions without relying on large cranes or multiple machines .

The SV-400 delivers the power you need , in the spaces you have , at a cost you can control .

With its 656 kN force , 3,000 rpm frequency , and robust dual-clamp system , the SV-400 redefines what is possible with excavator-mounted piling equipment . It is the ultimate choice for contractors who refuse to compromise on performance , reliability , or efficiency .

Contact us today for a quotation , technical consultation , or to arrange a demonstration with a compatible excavator in your region . Let VIBRA power your next project .
